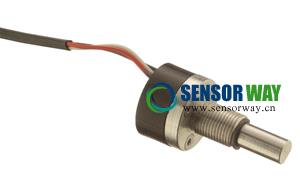

- ED-22位移編碼器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/25
Applications: Machine Tool Control, Paint Spraying System Control, Medical Equipment, Industrial Test and Measuring Equipment, Off Highway Cab Controls, Marine, Exercise Equipment, Valve Positioning, Industrial Joysticks
Industries: General Industry
Description: The ED-22 Series magnetic potentiometer can be used to replace a conventional potentiometer. This product offers 270 degrees of electrical travel, integrated rotational stop system, 300 degrees of mechanical travel, utilizing a sleeve bearing and shaft fitted with an O-ring seal. This sensor is designed for rotary human machine input (HMI) applications. The non-contact magnetic sensor design utilized in the ED-22 is well suited for industrial applications where temperature extremes, high vibration and shock, and contamination are present. The ED-22 is designed using our standard modular and flexible construction methods. Measurement Specialties can customize housings, shafts, and terminations to meet your exact specifications with little or no tooling costs.
Features:
Reliable and Consistent Rotational HMI Device
Magnetic Sensing Technology
Encapsulated Electronics/Sealed unit
Harsh Environment Compatibility
0.5 to 4.5, .1 to 4.9 or 0 to 5 Vdc outputs
Standard industry package size
Consistent Rotational Torque
Resistant to Contamination
Highly Resistant to Vibration
Metal Shaft and Bushing
Wide Operational Temperature Range (–40ºC to 85ºC)
Custom Housings, Shafts, Terminations Available
Excellent Stability - No Mechanical Contacts to wear
典型應用: 機械控制，噴涂設備控制，醫療設備，工業測試和測量設備，工程機械駕駛室控制，船舶，健身設備，閥門位置，工業操縱桿
行業: 工業控制
產品描述:
ED-22系列磁性電位計可以替代傳統的機械電位計。該傳感器的電行程為270度，機械行程為300度，內置旋轉自停系統，套筒軸承和轉軸由O形圈密封。采用非接觸磁性技術的ED-22編碼器可用于較寬的溫度范圍，以及高振動和沖擊的環境中，并且抗污染。ED-22系列采用模塊化設計，結構靈活，可以按用戶要求設計外殼、轉軸和電氣連接方式。
特點:
一致、可靠的旋轉反饋傳感器
磁性測量技術
封裝電路/密封結構
適用于惡劣工作環境
0.5 ~ 4.5VDC，0.1 ~ 4.9VDC，或0 ~ 5VDC輸出
標準工業封裝
良好的旋轉力矩
抗污染
抗沖擊和振動
金屬轉軸
工作溫度范圍寬（-40℃~85℃）
可按用戶要求定制外殼及轉軸
穩定性好 - 非接觸式，無磨損
ED-22系列磁性電位計更多技術參數及規格書下載請瀏覽：http://www.yyjsjy.net/sensors/225.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
