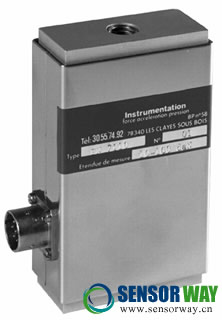

- FN7110雙量程力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/18
Applications: Process Control Equipment, Robotics and Effectors, Product Validation Testing, Laboratory and Research
Industries: General Industry
Description: The FN7110 features high accuracy measurement channels in two ranges in the same load cell. The standard ratio between the ranges is 1 to 10, and standard load range combinations go from 0-2 and 0-20 lb through 0-200 and 0-2000 lb. The FN7110's percentage accuracy is the same over each range in the load cell. In practice one maintains accuracy of 0.1% over the high force range even in the first10% of F.S. During measurement, once the lower range sensing element reaches its designed full scale limit, mechanical stops protect it against overloads, in tension and compression, up to 12 times the full scale limit of the higher range sensing element (which is equivalent to 12 times the full scale limit of the lower range). For high-level output, a model with an integrated amplifier is available. With many years of experience as a designer and manufacturer of sensors, Measurement-Specialties often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Features:
Double Full Scale Range from 10/100 to 1 kN/10 kN [2/20 to 200/2 klbf]
Tension and Compression
Other Ranges on Request
Accuracy 0.1% F.S.
Integrated Mechanical Stops
High Level Output Model with Integrated Amplifier
典型應用: 過程控制設備，機器人，產品驗證測試，實驗室
行業: 工業控制
產品描述:
FN7110是一款雙量程的高精度力傳感器。兩個量程之間的標準比率為1比10，標準量程從0-2 和 0-20 lb 到 0-200 和 0-2000 lb。FN7110兩個量程的精度相同，均為 0.1% F.S。在測量過程中，一旦達到小量程傳感元件的滿量程極限，機械限位會保護其不受過載損壞，大量程的過載能力為1.2倍（相當于小量程的12倍）�？蛇x放大輸出。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。
特點:
雙量程：從10/100 到 1 kN/10 kN [2/20 到 200/2 klbf]
拉力和壓力測量
可定制其他量程
精度：0.1% F.S.
內置機械限位
可選放大輸出
FN7110力傳感器更多技術參數及規格書下載請瀏覽：
http://www.yyjsjy.net/sensors/579.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
