- LM液位傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/11
Applications: Irrigation, RV and Marine Holding Tank Level, Water Storage and Recycling Systems, Small Tank Fluid Level, Chillers and Evaporative Coolers
Industries: Environmental Monitoring

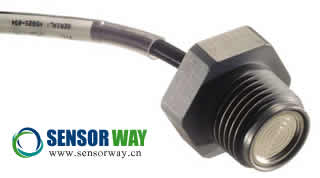

Description: The LM Series incorporates stainless steel and plastic isolation suitable for level sensing in water other liquids. The LM series uses a patent pending low cost stainless steel sensor in a PVC plastic fitting. The modular design is adaptable to an infinite number of plastic port variations. With high performance in a small form factor, the LM Series enables the miniaturization of high accuracy pressure systems. The standard output is .5V to 4.5V with a 5V supply.
Features:
Threaded Process Fitting
-20ºC to +85ºC Operating Temperature Range
±1% Pressure Non Linearity
±3.0% Total Error Band
Solid State Reliability
典型應用: 灌溉系統，房車和船舶水位保持，蓄水和水循環系統，小型罐體液位，冷卻器和蒸氣冷凝設備
行業: 環境監測
產品描述: LM系列采用專利的不銹鋼外殼傳感器和塑料過程連接頭相結合，用于測量水和其它液體的液位。產品設計靈活，可以滿足客戶對過程連接頭的各種要求。LM結構緊湊，精度高，工作電壓為5V，標準輸出為0.5V ~ 4.5V。
特點:
螺紋過程連接頭
工作溫度：-20~85℃工作溫度范圍
±1%非線性
±3.0%總誤差
固態結構
LM系列壓力傳感器更多技術參數及規格書下載請瀏覽：
http://www.yyjsjy.net/sensors/23.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
