- XPM10小型壓力變送器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/10
Applications: Hydraulic regulation process, Explosion test benches, Onboard equipment monitoring, Breaking system pressure, Laboratory and research

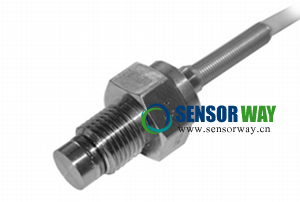

Description: The XPM10 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. It is made of stainless steel or titanium and is available in standard ranges from 0-1 to 350 bars [15 up to 5000 psi]. The XPM10 incorporates Measurement Specialties’ cutting edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM10’s sensing element is a fully temperature compensated Wheatstone bridge made with high stability micro-machined silicon strain gauges which optimize performance, especially at low ranges and frequencies. An on-board A1 or A2 amplifier for high level output is optionally available for all ranges, and an electrical connector interface is available for the standard low level output version. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. has the expertise to customize and/or design sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. Our conditioning electronics can power the sensor, amplify the electronic signal, and display the data digitally. A turnkey measurement system arrives with matched components, formatted, calibrated and ready for your immediate use.
Features:
Flush diaphragm
Low installation torque sensitivity
M10x1 thread
High level tension output available
For static and dynamic applications
典型應用: 液壓，爆炸測試，車載設備監控，剎車系統，實驗室和研究
產品描述: XPM10小型壓力變送器用于包括惡劣環境等多種工況下的動態和靜態壓力測量。傳感器采用不銹鋼或鈦金屬結構，標準量程從0~1到0~350bar（15~5000psi），可選放大輸出。XPM10結合了MEAS最新的SanShift技術，幾乎可以消除由于安裝扭矩帶來的零點漂移。傳感器的核心感應元件是一組金屬應變片組成的惠斯通電橋，經過溫度補償，性能良好，尤其在小量程和低頻率時。毫伏輸出型號可選電氣連接頭。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。
特點:
齊平膜
低安裝扭矩靈敏度
M10×1螺紋
放大輸出
靜態和動態測量應用
XPM10小型壓力變送器更多技術參數及規格書下載請瀏覽：http://www.yyjsjy.net/sensors/571.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
